Energicwave

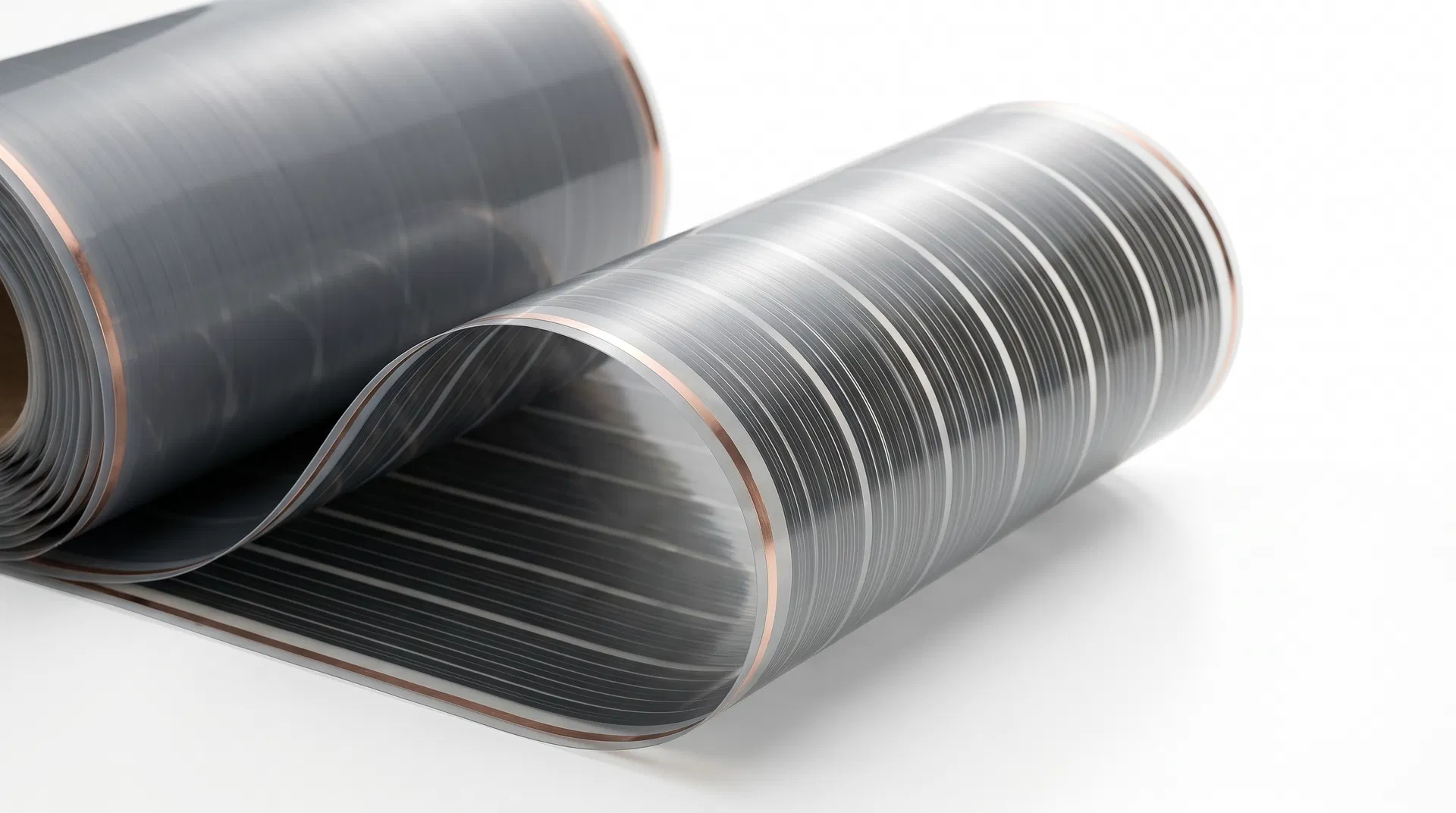

Infrared Heating Foil
Carbon-graphite technology. Paper-thin. Heats in minutes.
Thickness
Heat-up Time
Warranty
Energy Savings

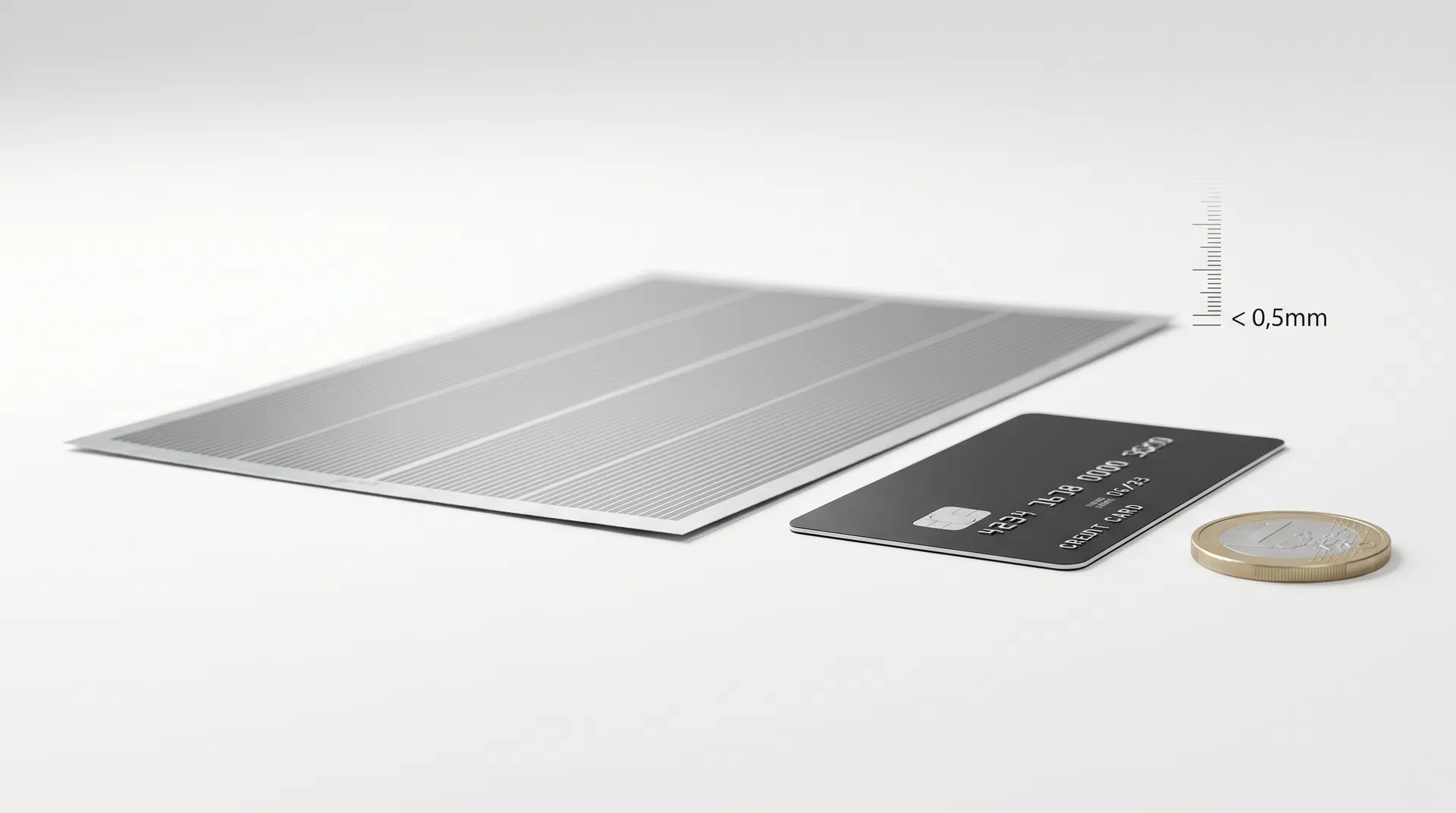

Impossibly Thin
Thinner than paper.
Zero floor raise.
At less than 0.5mm, the heating foil adds virtually nothing to your floor height. It slips between the insulation board and your laminate — invisible, unfelt, but always warm.

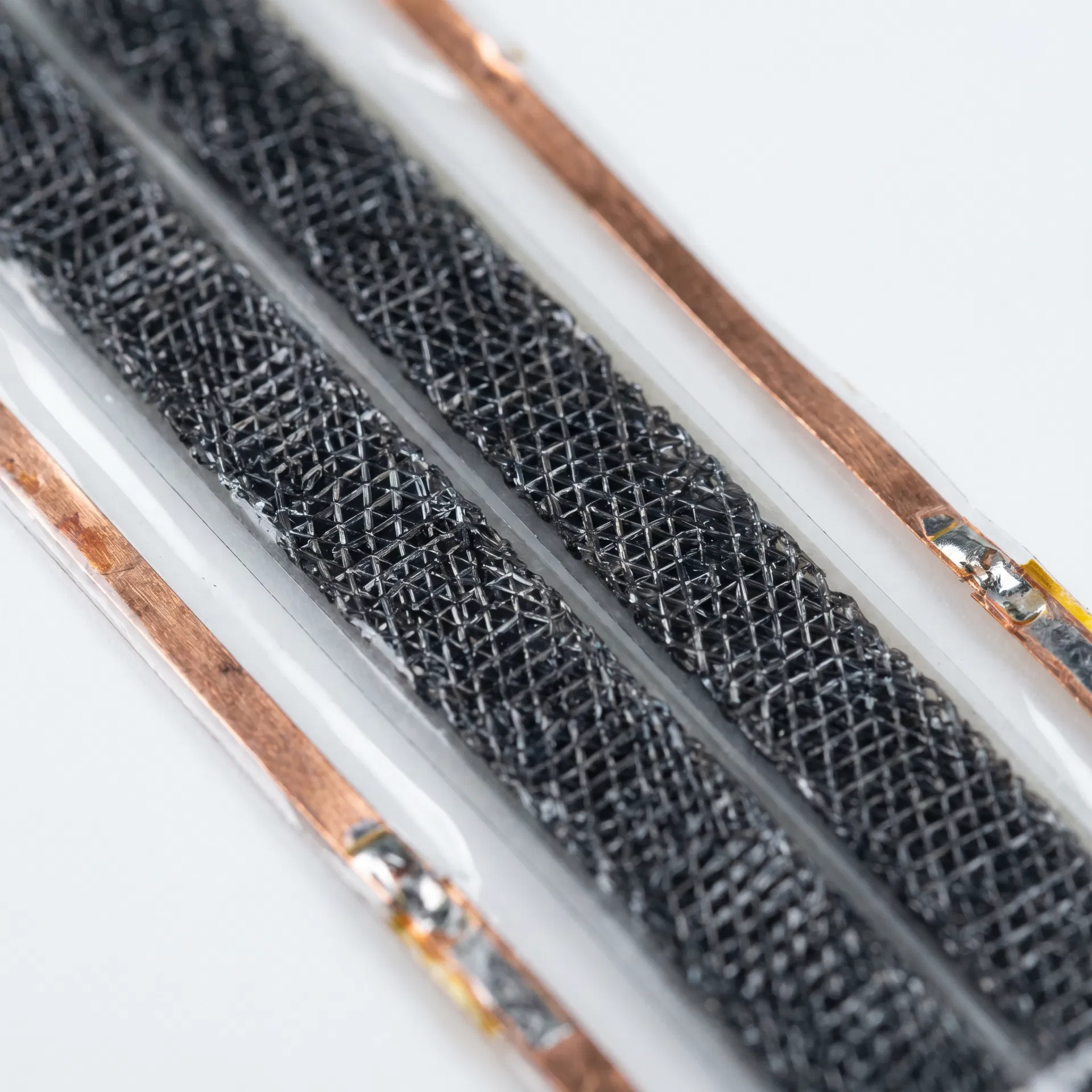

Carbon-Graphite Technology
Heats objects, not air.
Unlike convection radiators that waste energy heating air, our carbon-graphite film emits infrared radiation — warming floors, walls, and you directly. Faster. More efficient. More comfortable.
Instant Warmth
Full surface heats simultaneously — no cold spots, no waiting
PTC Self-Regulating
Automatically reduces power as temperature rises — saves up to 27% energy
50+ Year Lifespan
Carbon-graphite doesn't degrade — no moving parts, no wear, no maintenance

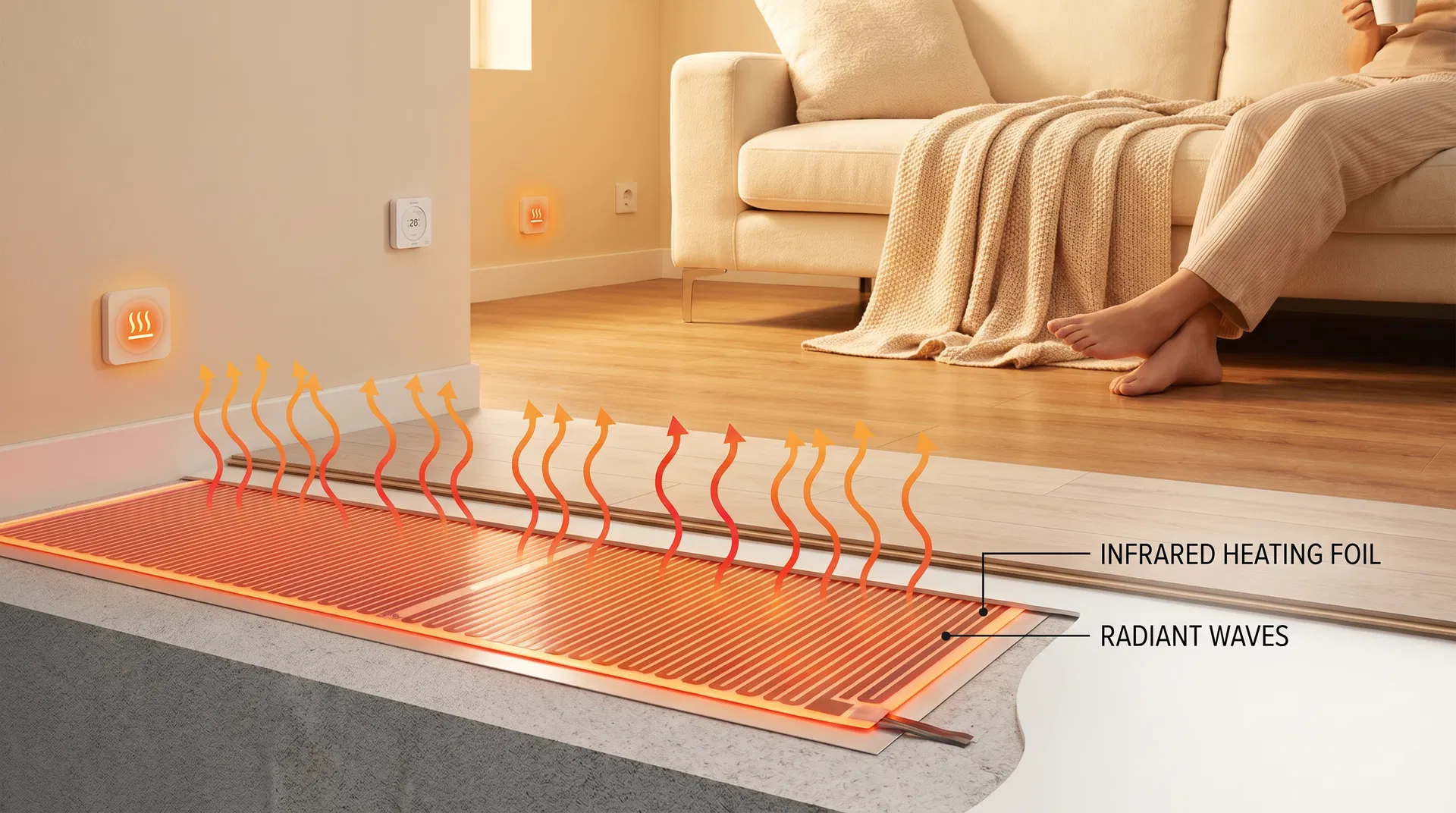

Infrared Radiation
Warmth you feel, not see.
Infrared waves travel through your floor covering and warm everything they touch — your feet, your furniture, your body. The air stays fresh. The warmth stays where you need it.
Choose Your Power
Three wattages. One perfect fit.
The right wattage depends on your room's insulation and whether the foil is your only heat source.
Heating Foil 110W
The 110W foil is the most versatile option — it works as both a primary and secondary heat source in most standard rooms. Suitable for homes built in the last 20 years with moderate insulation. If you're unsure which wattage to choose, this is the safe default.
Heat-up Time
8–15 min
Primary Heating
Yes
Running Cost
Medium
Insulation
Standard insulation
Best for:
| 80W | 110W | 220W | |
|---|---|---|---|
| Heat-up time | 10–20 min | 8–15 min | 5–10 min |
| Primary heating | ✗ | ✓ | ✓ |
| Running cost | Low | Medium | Higher |
| Insulation needed | Good | Standard | Any |
| Available widths | 50cm | 50cm | 50cm, 100cm |
| Warranty | 25 years | 25 years | 25 years |

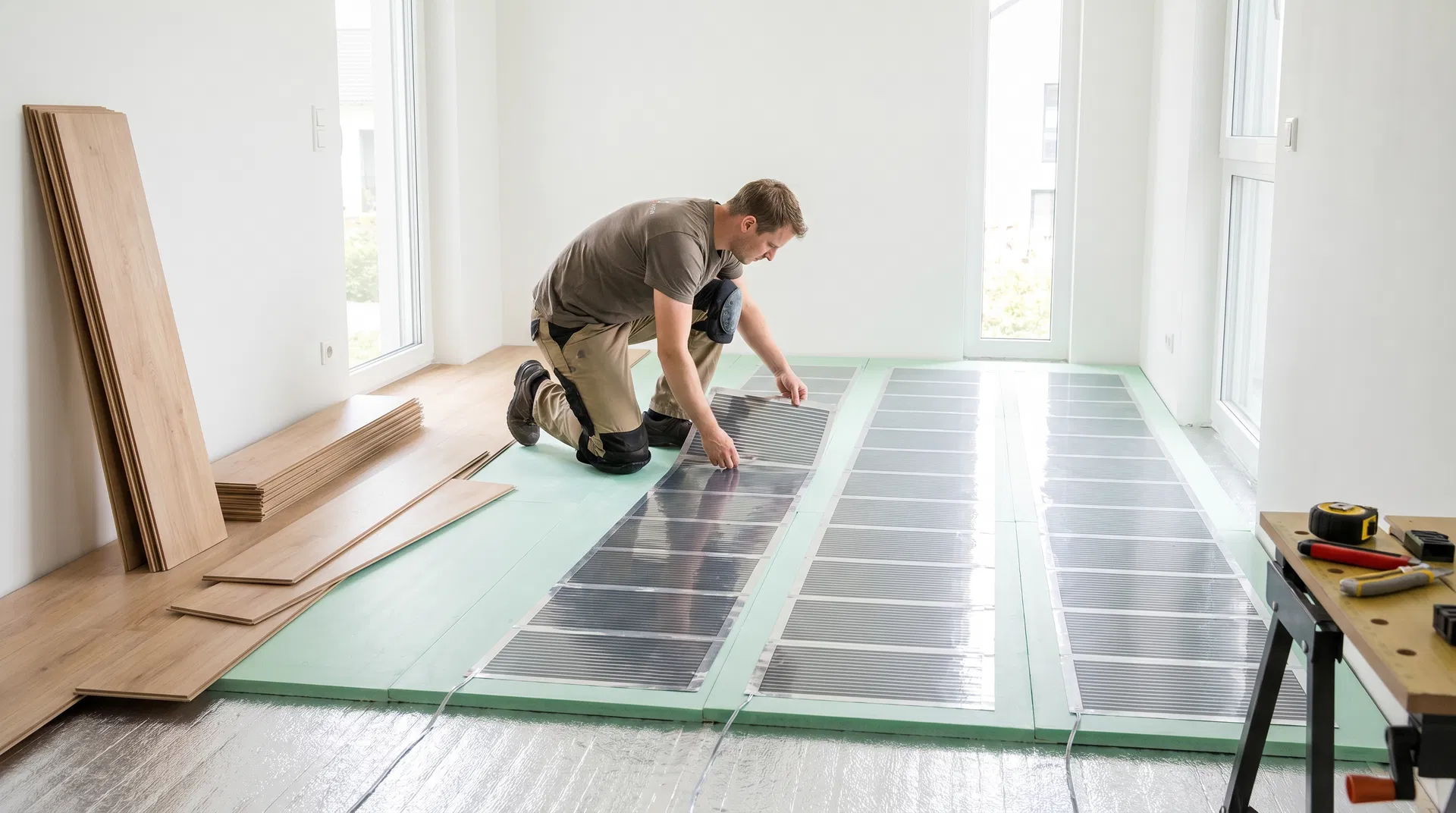

Dry Installation
No adhesive. No screed. No mess.
Cut from the roll every 20cm. Lay on XPS insulation board. Connect the bus bars. Place your laminate on top. That's it — warm floors in hours, not days.
Insulate
Lay XPS board with reflective backing on subfloor
Unroll & Cut
Cut foil strips to length every 20cm. Lay in parallel
Connect
Attach bus bar connectors and insulate with supplied tape
Cover
Lay protective underlay and your floating floor on top
Compatible Floor Types
Heating foils work with all floating floor finishes.
For ceramic tiles, use the EMAT 150W heating mat instead.
Technical Specifications
| Technology | Carbon-graphite infrared film |
| Power Options | 80W / 110W / 220W /m² |
| Thickness | < 0.5 mm |
| Available Widths | 50 cm, 100 cm (220W only) |
| Cut Interval | Every 20 cm |
| Radiation Type | Infrared (IR-C) |
| Self-Regulating | PTC — auto-adjusts power output |
| Installation | Dry — under floating floor |
| Compatible Floors | Laminate, wood, vinyl, cork, carpet |
| Warranty | 25 years |
Ready to warm your floors?
Available in 50cm and 100cm widths. Cut to any length. Free shipping on orders over €20.
